SI38N

Name: SI38N
Brand: IBASE Technology
SKU: SI38N
Availability: InStock

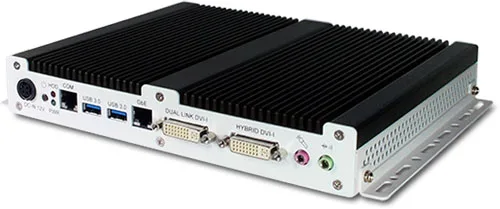

SI-38N Dual-display Fanless Digital Signage Player AMD R-Series system base

SI-38N Dual-display Fanless Digital Signage Player AMD R-Series system base. Local warranty support and engineering customization available on request.

CPU

AMD R-Series 32nm QC/DC APU · *The maximum TDP supported is 19W*

MEMORY

2x DDR3 1600MHz SO-DIMM memory, Max. 8GB

STORAGE

1x external Removable 2.5” HDD/SSD drive bay

DISPLAY

AMD R-Series QC/DC APU Fusion IGX · (384/240 Core @ 650 MHz) · 2x Hybrid DVI-I Supports: OpenCL™ 1.1 Direct Compute 11, · DirectX® 11 UVD3 Hardware Video Decoder, MPEG-2, MPEG-4, H.264, VC-1, WMV

REQUEST QUOTE DATASHEET (PDF)

P/N # SI38N

Diagram

Specifications

22 ROWS

System Mainboard	IB939
CPU Type	AMD R-Series 32nm QC/DC APU · The maximum TDP supported is 19W
CPU Package	827-BGA (837mm*2)
Chipset	AMD A70M Controller Hub
Memory	2x DDR3 1600MHz SO-DIMM memory, Max. 8GB
Graphics	AMD R-Series QC/DC APU Fusion IGX · (384/240 Core @ 650 MHz) · 2x Hybrid DVI-I Supports: OpenCL™ 1.1 Direct Compute 11, · DirectX® 11 UVD3 Hardware Video Decoder, MPEG-2, MPEG-4, H.264, VC-1, WMV
LAN	1x RTL8111E Gigabit LAN controller
Expansion Slots	1x mSATA/mPCIe(x1) Full size · 1x mPCIe(x1) Half size For Wi-Fi, Bluetooth, 3G or TV Tuner options
Auto Control and Monitoring	Watchdog Timer: 256 segments, 0, 1, 2...255 (sec/min) · On / Off scheduler: 2 time slots
Power Requirement	+12V DC-in
Construction	Aluminum + SGCC
Weight	1.7kg(3.75lbs)
Chassis Color	Black and White
Storage	1x external Removable 2.5” HDD/SSD drive bay
Power Supply	84W power adaptor
Mounting	Slim design with wall mounting holes
Dimensions	270mm(W) x 181mm(D) x 35mm(H) · 10.63”(W) x 7.09”(D) x 1.37”(H)
Operating Temperature	0°C~ 45°C (32°F~113°F)
Storage Temperature	-20° ~ 80°C (-4°F~176°F)
Relative Humidity	5~90% @ 45°C, (non-condensing)
Vibration	SSD: 5 grms / 5~500Hz / random operation HDD: 0.25 grms / 5~500Hz / random operation
Certification	CE, FCC, UL, CCC

Features

11 ROWS

Feature 1	iSMART - for EuP/ErP power saving,
Feature 2	auto-scheduler and power resume
Feature 3	Dual independent 1080p playback
Feature 4	AMD R-Series onboard Quad-Core / Dual Core
Feature 5	APU up to 19W
Feature 6	Supports up to 8GB DDR3 memory
Feature 7	Integrated AMD Radeon™ 384/240 Cores
Feature 8	DirectX ® 11 GPU in processor
Feature 9	Dual Mini PCI-E(x1) slots for Wi-Fi, Bluetooth,
Feature 10	3G or TV tuner options
Feature 11	Compact and fanless design

Ordering

3 ROWS

SI-38N-45 - Signage Player with AMD R452L Quad-Core (1.6/2.4GHz) CPU, 4GB DDR3 SO-DIMM, 2.5” 320GB SATA HDD, 84W power adaptor SI-38N-26 - Signage Player with AMD R260H Dual-Core (2.1/2.6GHz) CPU, 4GB DDR3 SO-DIMM, 2.5” 320GB SATA HDD, 84W power adaptor SI-38N-45M	- Signage Player with AMD R452L Quad-Core (1.6/2.4GHz) CPU, without RAM, HDD, with 80W adaptor Request a quote
SI-38N-26M	- Signage Player with AMD R260H Dual-Core (2.1/2.6GHz) CPU without RAM, HDD, with 80W adaptor Request a quote
SI-MK3	- Mounting bracket for SI-24SD/28/38 series Request a quote
