DIGITAL SIGNAGE / IN STOCK
IOPSEK1SYS
iOPS series Expansion Dock or for testing
iOPS series Expansion Dock or for testing. Local warranty support and engineering customization available on request.
POWER
DC power input +12V
DIMENSIONS
200.5mm(W) x 173.9mm(D) x 36.5mm(H)
SYSTEM MAINBOARD
IVY CHASE MB
I/O INTERFACE
1x Display Port · 1x HDMI Port · 1x RJ45 for Gigabit LAN · 1x DB9 for RS232 · 2x USB 2.0 ports, 1x USB 3.0 port · 1x Microjack Audio connectors for Line-in / Line-out · 1x 12V Mini DIN DC Jack
P/N # IOPSEK1SYS
Diagram Specifications
10 ROWS
| System Mainboard | IVY CHASE MB |
|---|---|
| I/O Interface | 1x Display Port · 1x HDMI Port · 1x RJ45 for Gigabit LAN · 1x DB9 for RS232 · 2x USB 2.0 ports, 1x USB 3.0 port · 1x Microjack Audio connectors for Line-in / Line-out · 1x 12V Mini DIN DC Jack |
| Power Requirement | DC power input +12V |
| Construction | SGCC |
| Weight | 0.2KG |
| Chassis Color | Black |
| Dimensions | 200.5mm(W) x 173.9mm(D) x 36.5mm(H) |
| Vibration | Industrial Manufacturer Standard test |
| Certification | CE/FCC Class A · 0°C~ 40°C (32°F~104°F) · -20°C~80°C (-4°F~176°F) |
| Relative Humidity | 10%~90% (non-condensing) |
Features
3 ROWS
| Feature 1 | Expansion Dock for iOPS series that |
|---|---|
| Feature 2 | can use OPS module without OPS display |
| Feature 3 | Support 3 independent Video output |

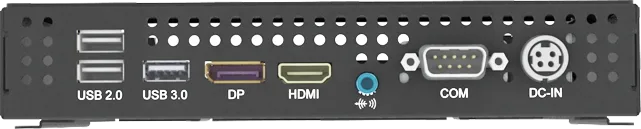

I/O — Rear panel
Front access
Where the IOPSEK1SYS is deployed
USE CASE
Digital signage
Unattended media players for retail, transit, and wayfinding displays.
USE CASE
Video walls
Multi-display outputs driving large-format and multi-panel video walls.
USE CASE
Interactive displays
Touch-enabled signage for interactive wayfinding and self-service.
USE CASE
Outdoor advertising
Sunlight-readable, sealed players for outdoor and semi-outdoor signage.
Have a specific use case?
Our applications engineers will match your environment, software stack and I/O requirements to the right platform — or modify this one.
TALK TO AN ENGINEERResources
CUSTOMER PORTAL
Licensed customers get access to BIOS source, schematics, and full production test documentation.
REQUEST PORTAL ACCESSOrdering
1 ROWS
| iOPS-EK1-SYS | - iOPS series Expansion Dock with 150W adapter for use without OPS display Request a quote |
|---|
