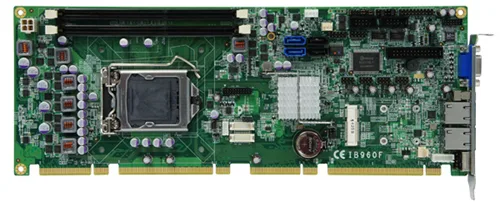

IB960
LGA1155 Intel Core™ i7 / i5 / i3 Full Size CPU Card w/ Intel Q67 Express Chipset
LGA1155 Intel Core™ i7 / i5 / i3 Full Size CPU Card w/ Intel Q67 Express Chipset. Local warranty support and engineering customization available on request.
Specifications
| CPU Socket | LGA1155 |
|---|---|
| CPU | 2nd Generation Intel Core™ i7 / i5 / i3, Pentium QC/DC processors; Up to 3.4GHz |
| Chipset | Intel® Q67 PCH |
| BIOS | AMI BIOS, ACPI supported |
| System Memory | Two DDR3 sockets; Up to 8GB 1066/1333 MHz SDRAM, w/o ECC |
| Integrated VGA | Intel® Q67 chipset built-in, Gfx Gen 5.7; Supports VGA CRT, DVI-D, 24-bit dual channel LVDS |
| LAN | Intel 82579V Gigabit LAN PHY; Intel 82583V PCI-Gigabit LAN; RJ-45 on board |
| Audio | Intel® Q67 chipset built-in HD audio with Realtek ALC662 codec for 5.1 channel output |
| Multi I/O | Winbond W83627DHG-P; 1x KB/mouse, 1x RS232, 1x RS-232/422/485, 4x SATA II, 2x SATA III, 1x LPT |
| USB | 1x port on board, 8x ports via pin header (USB 2.0) |
| Serial ATA Interface | 2x SATA III ports, 3Gb/s 4x SATA II ports, 6Gb/s |
| Hardware Monitoring | Monitors system/CPU temperature and voltage status |
| Watchdog Timer | Generates system reset; 256 levels |
| Digital I/O | 4 in and 4 out |
| Expansion Slots | 1x Mini PCI-E |
| Edge Connectors | CRT VGA, USB, RJ-45, KB/mouse |
| Form Factor | Full Size CPU Card |
| Dimensions | 338mm x 122mm (13.31" x 4.8") |
| Power Consumption | TBC |
| Operating Temperature | 0°C~60°C (32°F~140°F) |
| Storage Temperature | -20°C~80°C (-4°F~176°F) |
| Relative Humidity | 0%~90% (non-condensing) |

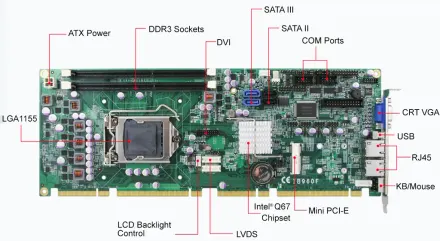

I/O — Rear panel
Front access
Where the IB960 is deployed
Drop-in board for custom enclosures, instrumentation, and purpose-built hardware.
PLC-adjacent controllers, motion control, and machine-tending applications.
Behind-display compute for purpose-built kiosk and terminal hardware.
Instrument hosts and ATE controllers built around a serviceable long-lifecycle board.
Our applications engineers will match your environment, software stack and I/O requirements to the right platform — or modify this one.
TALK TO AN ENGINEERResources
Licensed customers get access to BIOS source, schematics, and full production test documentation.
REQUEST PORTAL ACCESSOrdering
| IB960F | - LGA1155 PICMG 1.3 Q67 full-size CPU card with VGA, DVI-D, 24-bit LVDS, and dual Gigabit LAN Request a quote |
|---|---|
| IP180 | - PICMG 1.3 backplane with 3 ISA slots, 4 PCI 64-bit 33/66 MHz slots (also available as a 2-slot 64-bit/66 MHz variant), and 4 PCI-X 64-bit 100 MHz slots Request a quote |
| CAB-USB3K | - USB connector on bracket Request a quote |
| CAB-AUDIO-18K | - Audio connectors on bracket Request a quote |
| CAB-DVIK3 | - DVI-D connector on bracket Request a quote |
| CAB-IB64 | - Cable kit for IB960 Request a quote |
