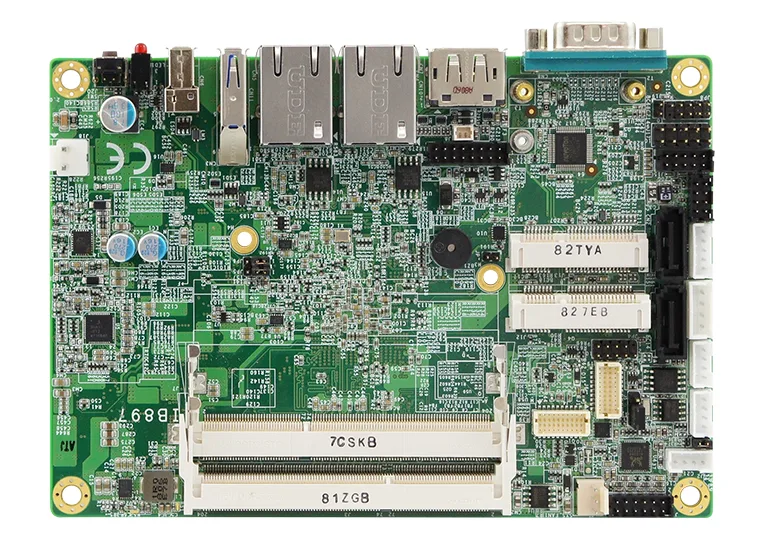

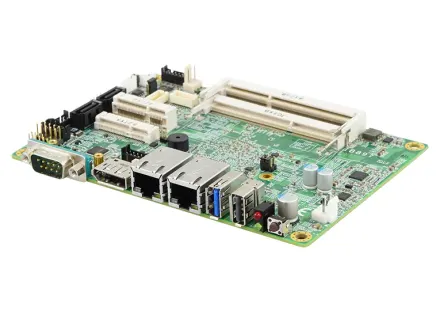

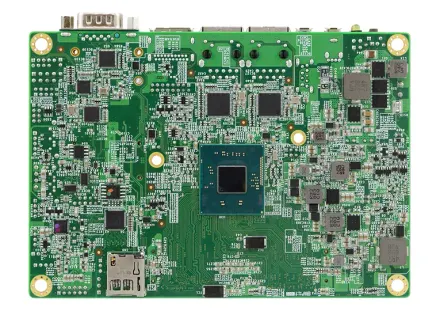

IB897
3.5" Single Board Computer with Intel® Atom® E3800 Series Processor
3.5" Single Board Computer with Intel® Atom® E3800 Series Processor. Local warranty support and engineering customization available on request.
CPU
Intel® Atom® QC E3845 (1.91GHz, 2MB cache)Intel® Atom® DC E3827 (1.75GHz, 1MB cache)2nd Atom® SC E3815 (1.46GHz, 512k cache)
MEMORY
2x DDR3L-1333 SO-DIMM, Max 8GB (Non-ECC)1x DDR3L-1333 SO-DIMM, (IB897-215 only)
STORAGE
1x mSATA, 1x MicroSD
DISPLAY
Supports CRT, DisplayPort, and 24-bit dual-channel LVDS
x86 based 3.5 Single Board…Single Board Computer
P/N # IB897
Manual Specifications
24 ROWS
| CPU | Intel® Atom® QC E3845 (1.91GHz, 2MB cache)Intel® Atom® DC E3827 (1.75GHz, 1MB cache)2nd Atom® SC E3815 (1.46GHz, 512k cache) |
|---|---|
| PCH | Integrated in Intel® Atom® SoC |
| Memory | 2x DDR3L-1333 SO-DIMM, Max 8GB (Non-ECC)1x DDR3L-1333 SO-DIMM, (IB897-215 only) |
| BIOS | AMI |
| Watchdog Timer | 256 levels |
| H/W Monitor | Yes |
| Storage Device Interface | 1x mSATA, 1x MicroSD |
| Mini Type Slots | 2x Mini PCI-E (1x full-size, 1x half-size) |
| Graphics Controller | Intel® Atom® SoC integrated Gen7 4EUs graphics |
| Video Output | Supports CRT, DisplayPort, and 24-bit dual-channel LVDS |
| Ethernet | 2x Intel® I210IT Gigabit LAN |
| I/O Chipset | Nuvoton NCT5523D |
| Serial Port | 1x RS232/422/485 (jumper-less selection)1x RS232 |
| USB 2.0 | 1x USB 2.0 on board2x USB 2.0 via pin header |
| USB 3.X | 1x USB 3.0 on board |
| Serial ATA | 2x SATA III |
| Audio | Intel® Atom® SoC built-in HD Audio controller + Realtek ALC269Q HD codec w/ class-D amplifier |
| TPM | N/A |
| Others | Digital I/O, +9V~ +30V DC-In, iSMART |
| Dimensions (L x W) | 102mm x 147mm (4" x 5.8") |
| Power Consumption | Intel® Atom® E3845 @ 1.91GHz w/ 2x Transcend 2GB DDR3L-1600+12V: 1.57A |
| Operating Temperature | -40°C~85°C (-40°F~185°F) |
| Storage Temperature | 40°C~90°C (-40°F~194°F) |
| Relative Humidity | 90% (non-condensing @60°C) |

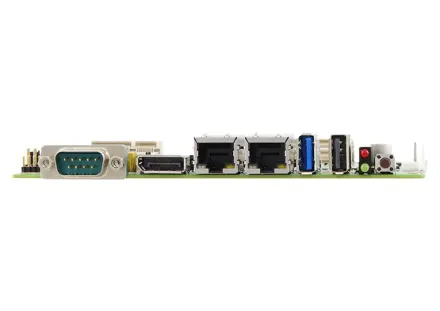

I/O — Rear panel
Front access
Where the IB897 is deployed
USE CASE
OEM integration
Drop-in board for custom enclosures, instrumentation, and purpose-built hardware.
USE CASE
Industrial control
PLC-adjacent controllers, motion control, and machine-tending applications.
USE CASE
Embedded kiosks
Behind-display compute for purpose-built kiosk and terminal hardware.
USE CASE
Test & measurement
Instrument hosts and ATE controllers built around a serviceable long-lifecycle board.
Have a specific use case?
Our applications engineers will match your environment, software stack and I/O requirements to the right platform — or modify this one.
TALK TO AN ENGINEERResources
CUSTOMER PORTAL
Licensed customers get access to BIOS source, schematics, and full production test documentation.
REQUEST PORTAL ACCESSOrdering
8 ROWS
| IB897-I45 | - Intel® Atom™ E3845(1.91GHz) 3.5-inch Disk Size SBC w/ dual PCI-E GbE LAN, CRT, DisplayPort & LVDS (24-bit LVDS dual channel), mSATA, iSMART, Wide Temp. support Request a quote |
|---|---|
| IB897-I27 | - Intel® Atom™ E3827(1.75GHz) 3.5-inch Disk Size SBC w/ dual PCI-E GbE LAN, CRT, DisplayPort & LVDS (24-bit LVDS dual channel), mSATA, iSMART, Wide Temp. support Request a quote |
| IB897-I15 | - Intel® Atom™ E3815(1.46GHz) 3.5-inch Disk Size SBC w/ dual PCI-E GbE LAN, CRT, DisplayPort & LVDS (24-bit LVDS dual channel), mSATA, iSMART, Wide Temp. support Request a quote |
| IB897-I45P | - Intel® Atom™ E3845(1.91GHz) 3.5-inch Disk Size SBC w/ dual PCI-E GbE LAN, CRT, DisplayPort & LVDS (24-bit LVDS dual channel), mSATA, iSMART, Wide Temp. support, pin-header type for power button and LED Request a quote |
| IB897-I27P | - Intel® Atom™ E3827(1.75GHz) 3.5-inch Disk Size SBC w/ dual PCI-E GbE LAN, CRT, DisplayPort & LVDS (24-bit LVDS dual channel), mSATA, iSMART, Wide Temp. support, pin-header type for power button and LED Request a quote |
| HSIB897-BGA | - Heatsink for IB897 Request a quote |
| HSIB897-BGA-1 | - Heat spreader for IB897 Request a quote |
| IB76 | - Cable kit for IB897, w/ USB, COM, power, SATA + power, VGA Request a quote |
