UMT-7212

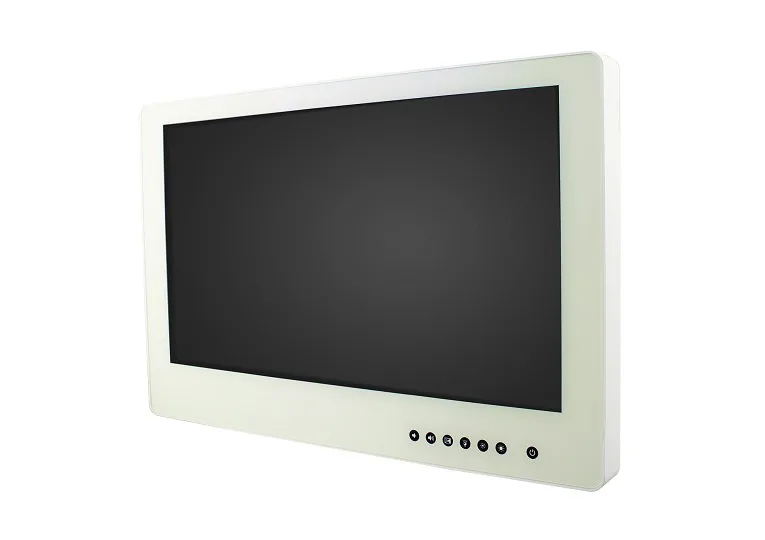

21.5” Medical Panel PC with 6th Gen Intel® Core™ i5-6300U Processor
21.5” Medical Panel PC with 6th Gen Intel® Core™ i5-6300U Processor. Local warranty support and engineering customization available on request.
CPU
Intel® Core™ i5-6300U 2.4GHz
MEMORY
2x DDR4-2133 SO-DIMM, default 4GB (1x 4GB )
STORAGE
1x 2.5” SATA, default 64G SSD1x M.2 SSD
DISPLAY
21.5” TFT LCD
IP65 / IP54Medical Panel PCODM Panel PC
P/N # UMT-7212
Specifications
42 ROWS
| Display Size | 21.5” TFT LCD |
|---|---|
| Max. Resolution | 1920 x 1080 |
| Luminance (cd/m2) | 300 |
| Contrast | 1000:1 |
| Max. Color | 16.7M |
| View Angle (H/V) | 178° /178° |
| Backlight Lifetime(hrs) | 30000 |
| Touch Type | Projected capacitive |
| Touch Interface | USB |
| Light Transmission (%) | 87 |
| Point of touch | Up to 10 |
| USB 3.0/ 3.1 | 2 |
| USB 2.0 | 2 |
| RS-232/422/485 Selectable in BIOS | 1 (4KV isolated) |
| RS-232 | 1 (4KV isolated) |
| LAN | 2x GbE (4KV isolated) |
| Additional Graphics | DP |
| Audio | None |
| Digital I/O | None |
| Power Connector | IEC60320 C14 |
| Power Button | Capacitive-type power button with LED indicator in front bezel |
| Dimensions (mm) | 557 x 360 x 80 |
| Net Weight (kgs) | 6.7 |
| Processor | Intel® Core™ i5-6300U 2.4GHz |
| Memory | 2x DDR4-2133 SO-DIMM, default 4GB (1x 4GB ) |
| Thermal Design | Fanless |

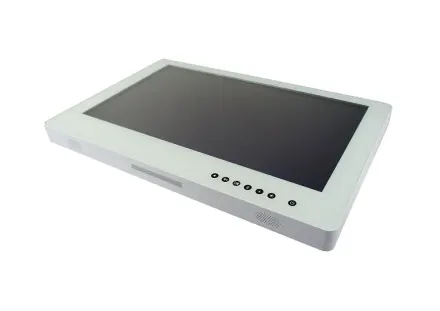

| Membrane Control | Capacitive keys for Power on-off/Brightness up/down/Volume up/down/Touch on-off/Reading light on-off |
| Built-in Speaker/MIC | IP54 speaker |
| Internal Expansion Bus | 1x M.2 Type 2230 socket1x Mini PCI-E full-size socket |
| Expansion Slot | 1x PCI-E (x4) |
| Wireless | Optional |
| Storage | 1x 2.5” SATA, default 64G SSD1x M.2 SSD |
| Power Input Range | 90V AC-240V ACOptional internal backup battery for 15-min operation |
| Chassis Material | Aluminum + Sheet metal with white powder coating |
| Color (Front/Back) | Medical White |
| IP Rating | IP65 rated front bezel / IP54 (except I/O side) |

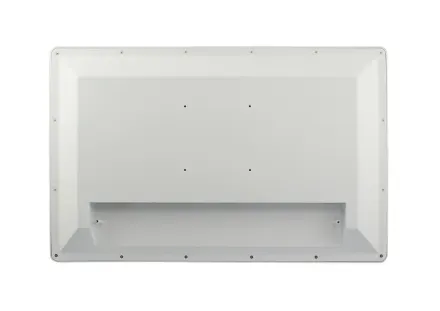

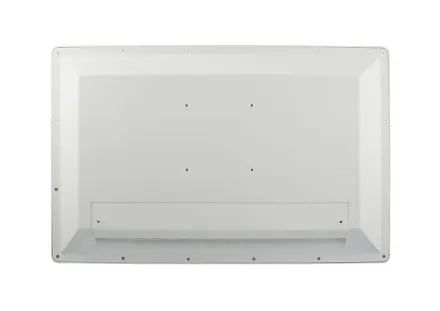

| Mounting | VESA 100mm x 100mm |
| Operating Temperature | 0°C ~40°C |
| Storage Temperature | -20°C ~ 60°C |
| Storage Humidity | 10%~ 95% (non-condensing) |
| Certification | CE/FCC Class-B and LVDEN 60601-1: 2006 + A1: 2013(IEC 60601-1: 2012 reprint)EN 60601-1-2:2015 (IEC 60601-1-2:2014) |
| Supported Operating Systems | Windows 10 64-bit |

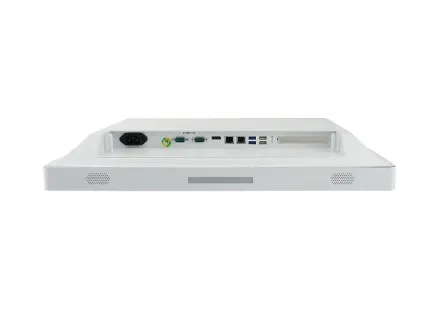

I/O — Rear panel

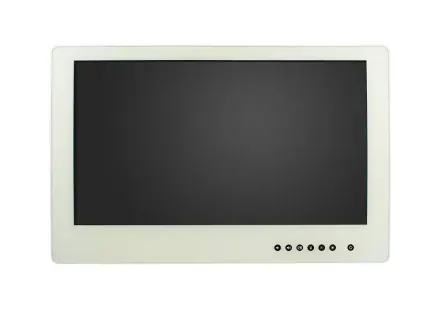

Front access
