IPPCH07
Fanless 7 inch low power panelpc Samsung S3C2440A-40 400MHz HMI
Fanless 7 inch low power panelpc Samsung S3C2440A-40 400MHz HMI. Local warranty support and engineering customization available on request.
CPU
SAMSUNG S3C2440A-40 400MHz processors
MEMORY
Onboard DDR2 128MB 400 MHz
STORAGE
Onboard 128M Flash
DISPLAY
None
IP65
P/N # IPPCH07
Specifications
37 ROWS
| Processor | SAMSUNG S3C2440A-40 400MHz processors |
|---|---|
| System Memory | Onboard DDR2 128MB 400 MHz |
| USB | USB: 1x Device, 1x Host |
| Serial/Parallel | 1x RS232 COM1 · 1x RS422/485 COM2 |
| Audio | None |
| Display Interface | None |
| LAN | None |
| Digital I/O | None |
| Keyboard/Mouse | None |
| Membrane Control | Front home key |
| Power | 24V±20% DC, isolated power |
| HDD | Onboard 128M Flash |
| Removable Slot | 1x SD card |
| Onboard Expansion Bus | None |
| Expansion Slot | None |
| Max. Resolution | 800 x 480 |
| Max. Color | 65536 |
| Luminance (cd/m2) | 250 |
| View Angle (H/V) | 140/120 |
| Contrast | 500:1 |
| Backlight Lifetime(hrs) | 20000 |
| Touch Type | 4-wire resistive touch |
| Interface | Processor built-in |
| Light Transmission (%) | 78 |
| Power Input | 24V±20% DC, Isolated power |
| Construction | Plastic |
| IP Rating | IP65 (Front panel with mount) |
| Mounting | Panel mount only |
| Dimensions (mm) | 199.8 x 147.8 x 40.1 |
| Net Weight (kgs) | 1.0kg |
| Operating System Support | Linux 2.6X |
| Operating Temperature(°C) | 0°C~ 50°C |
| Storage Temperature(°C) | -20°C~60°C |
| Storage Humidity | 10~90RH (No frosting) |
| Certification | FCC class A |
| EN 55022 | 2006 complies, class A, EN 61000-3-2:2006 |
| EN 61000-3-3 | 1995 + A1:2001 + A2:2006 standard |
Features
6 ROWS
| Feature 1 | RISC 400MHz |
|---|---|
| Feature 2 | Supports 64M Bytes memory |
| Feature 3 | Front keypads for OSD adjustment and function keys for IPPC H07/N10 |
| Feature 4 | IP65 front-panel protection |
| Feature 5 | Resistive touch panel |
| Feature 6 | Fanless design |

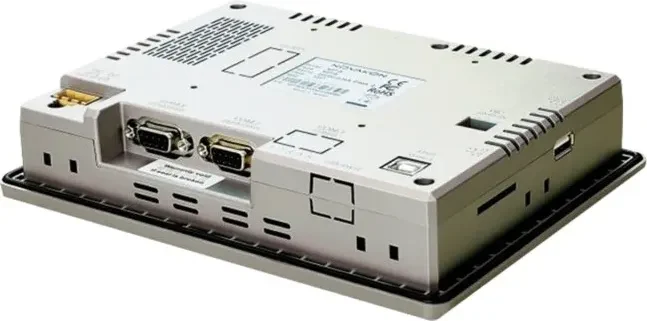

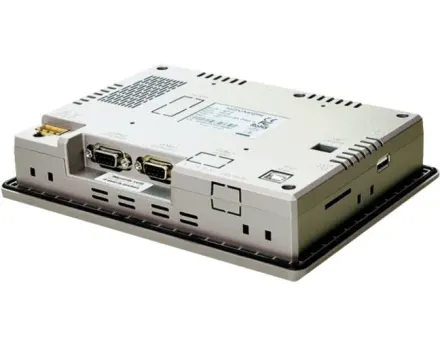

I/O — Rear panel

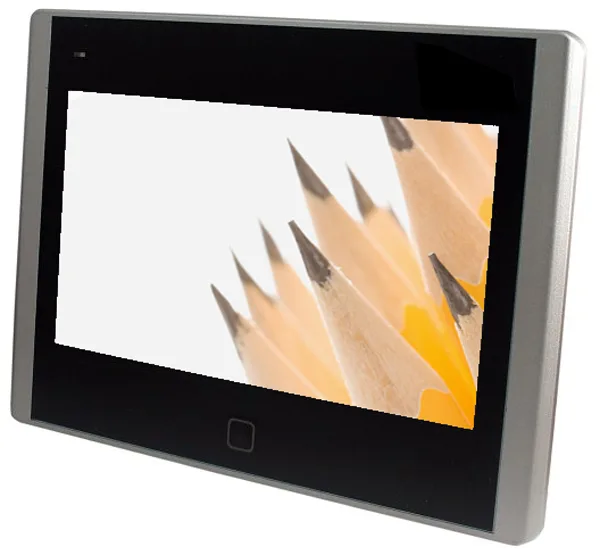

Front access
Where the IPPCH07 is deployed
USE CASE
HMI / operator terminals
Plant-floor human-machine interfaces for SCADA and process visualization.
USE CASE
Medical & lab instruments
Diagnostic and point-of-care touch terminals with sealed, sanitizable fronts.
USE CASE
Self-service kiosks
Public-facing terminals for wayfinding, ticketing, and interactive displays.
USE CASE
Outdoor / transportation HMI
Sunlight-readable, sealed touch terminals for outdoor and in-vehicle use.
Have a specific use case?
Our applications engineers will match your environment, software stack and I/O requirements to the right platform — or modify this one.
TALK TO AN ENGINEERResources
- REQUEST →IPPCH07 datasheetAvailable on request
- REQUEST →IPPCH07 user manualAvailable on request
- REQUEST →Driver packageAvailable on request
- REQUEST →Declaration of Conformity (CE)Available on request
CUSTOMER PORTAL
Licensed customers get access to BIOS source, schematics, and full production test documentation.
REQUEST PORTAL ACCESSOrdering
4 ROWS
| IPPC-H07P (With iFace) | - Request a quote |
|---|---|
| IPPC-H07LP (Pure Linux) | - Request a quote |
| IPPC-H07N (With iFace) | - 7" RISC PPC, 800x480 pixel, 64K color, ARM 400MHz, Flash 128M, RAM 64M, Data Memory 64K, COM1 (RS232/422/485), COM2 (RS232/422/485), COM3 (RS422/485), USB (1 Host/1Device), Ethernet, SD Card, 24V ± 20% DC Request a quote |
| IPPC-H07LN (Pure Linux) | - 7" RISC PPC, 800x480 pixel, 64K color, ARM 400MHz, Flash 128M, RAM 64M, Data Memory 64K, COM1 (RS232/422/485), COM2 (RS232/422/485), COM3 (RS422/485), USB (1 Host/1Device), Ethernet, SD Card, 24V ± 20% DC Request a quote |
