BYTEM-121-PC

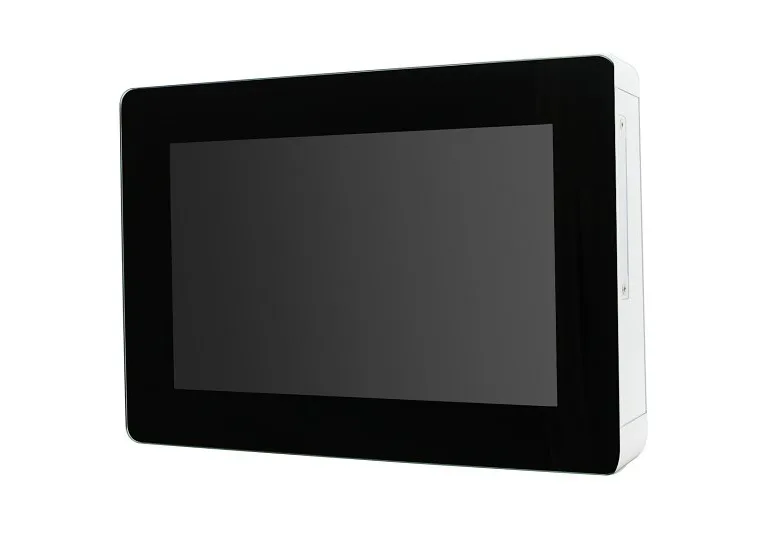

All-in-One 12.1" Panel PC with Intel® Atom® Processor E3845
All-in-One 12.1" Panel PC with Intel® Atom® Processor E3845. Local warranty support and engineering customization available on request.
CPU
Intel® Atom® Processor E3845 (Quad-Core @ 1.91GHz)
MEMORY
2x DDR3L SO-DIMM, up to 8GB, default DDR3L 4GB (4GBx1)
STORAGE
1x 2.5” SATA
DISPLAY
12.1” TFT-LCD
IP65Compact Panel PCODM Panel PC
P/N # BYTEM-121-PC
Specifications
42 ROWS
| Display Size | 12.1” TFT-LCD |
|---|---|
| Max. Resolution | 1024 x 768 |
| Luminance (cd/m2) | 350 |
| Contrast | 800:1 |
| Max. Color | 16.7M |
| View Angle (H/V) | 160/160 |
| Backlight Lifetime(hrs) | 30000 |
| Touch Type | Projected capacitive |
| Touch Interface | USB |
| Light Transmission (%) | 85 |
| Point of touch | 2 |
| USB 3.0/ 3.1 | 1 |
| USB 2.0 | 1 |
| RS-232/422/485 Selectable in BIOS | 1 |
| RS-232 | 1 |
| LAN | 2x GbE |
| Additional Graphics | DP |
| Audio | None |
| Digital I/O | None |
| Power Connector | 3-pin terminal block |
| Power Button | Reset button |
| Dimensions (mm) | 317 x 255 x 59.6 |
| Net Weight (kgs) | 4.3 |
| Processor | Intel® Atom® Processor E3845 (Quad-Core @ 1.91GHz) |
| Memory | 2x DDR3L SO-DIMM, up to 8GB, default DDR3L 4GB (4GBx1) |
| Thermal Design | Fanless |
| Membrane Control | None |
| Built-in Speaker/MIC | None |
| Internal Expansion Bus | 1x mPCI-E(x1) w/ USB signal [half-size]1x mSATA/mPCI-E(x1) w/ USB signal and mSATA supports [full-size] |
| Expansion Slot | None |
| Wireless | Optional Wi-Fi/BT |
| Storage | 1x 2.5” SATA |
| Power Input Range | 9~30V DC |
| Chassis Material | Aluminum front bezel and white steel back cover with aluminum heat-sink |
| Color (Front/Back) | Black / white |
| IP Rating | IP65 front bezel |
| Mounting | VESA 75x75 mm |
| Operating Temperature | 0°C~ 40°C (with HDD/CFast)0°C~ 50°C (with SSD) |
| Storage Temperature | -20°C~60°C |
| Storage Humidity | 10%~90% (non-condensing) |
| Certification | CE/FCC Class-B |
| Supported Operating Systems | Windows 8 32/64-bit, Windows 7 Pro for Embedded 64-bit, WES7 64-bit |

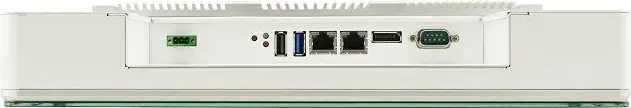

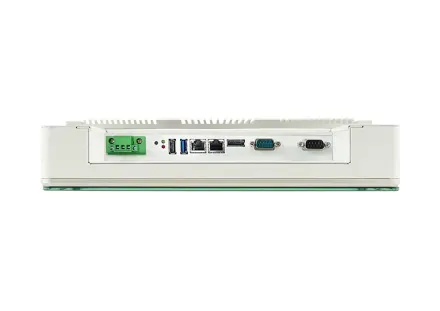

I/O — Rear panel
Front access
Where the BYTEM-121-PC is deployed
USE CASE
HMI / operator terminals
Plant-floor human-machine interfaces for SCADA and process visualization.
USE CASE
Medical & lab instruments
Diagnostic and point-of-care touch terminals with sealed, sanitizable fronts.
USE CASE
Self-service kiosks
Public-facing terminals for wayfinding, ticketing, and interactive displays.
USE CASE
Outdoor / transportation HMI
Sunlight-readable, sealed touch terminals for outdoor and in-vehicle use.
