IB811

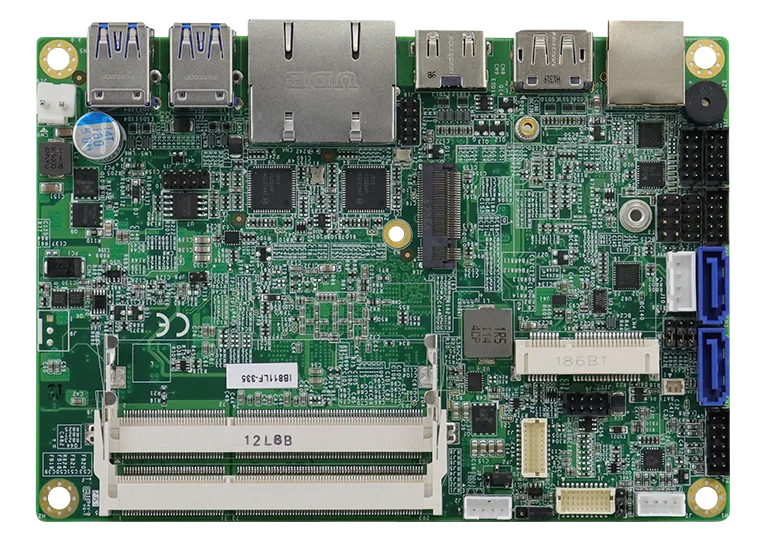

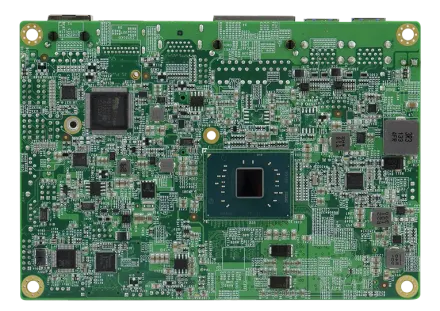

Ordinateur monocarte 3,5 po — Intel® Atom® x7/x5 / Pentium® / Celeron® SoC
Ordinateur monocarte 3,5 po — Intel® Atom® x7/x5 / Pentium® / Celeron® SoC. Soutien de garantie local et personnalisation d’ingénierie offerte sur demande.
Spécifications
| Processeur | Intel Atom® x7-E3950 Processor (1.6GHz~2.0GHz)Intel Atom® x5-E3940 Processor (1.6 GHz~1.8GHz)Intel Atom® x5-E3930 Processor (1.3 GHz~1.8GHz)Intel® Pentium® Processor N4200 (1.1GHz~ 2.5GHz)Intel® Celeron® Processor N3350 (1.1GHz~ 2.4GHz) |
|---|---|
| PCH | Integrated in Intel® SoC |
| Mémoire | 2x DDR3L SO-DIMM, Max 8GB (Non-ECC) |
| BIOS | AMI |
| Minuterie de surveillance | 256 levels |
| Surveillance matérielle | Yes |
| Interface de stockage | 1x mSATA |
| Emplacements Mini | 1x Mini PCI-E (full-size), 1x M.2 (B-key, type:3042) |
| Contrôleur graphique | Intel® SoC integrated Gen9 18EUs graphics |
| Sortie vidéo | Supports HDMI (1.4b), DP (1.2), 24-bit dual-channel LVDS |
| Ethernet | IB811F-I50/I40/I30: 2x Intel® I210IT Gigabit LANIB811F-420/335: 2x Intel® I211AT or I210AT Gigabit LAN |
| Chipset d’E/S | Fintek F81964D-I |
| Port série | 1x RS232/422/485 (jumper-less selection)3x RS232 |
| USB 2.0 | 2x USB 2.0 via pin-header |
| USB 3.X | 4x USB 3.0 on board |
| Serial ATA | 2x SATA III |
| Audio | Intel® Atom® SoC built-in HD audio controller + Realtek ALC888SHD Codec w/ class-D speaker amplifier |
| TPM | TPM (2.0) |
| Autres | Digital I/O, +9V~ +36V DC-In, EuP/ErP |
| Dimensions (L x l) | 102mm x 147mm (4" x 5.8") |
| Consommation électrique | Intel® Atom® E3900 1.3GHz w/ 2x DDR3L 1600 4GB+12V: 1.2A |
| Température de fonctionnement | E3950/E3940/E3930: -40°C~85°C (-40°F~185°F)N4200/N3350: 0°C~60°C ( 32°F~140°F ) |
| Température d’entreposage | -40°C~90°C ( -40°F~194°F) |
| Humidité relative | 90% (non-condensing @60°C) |

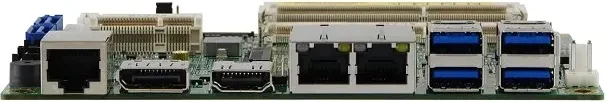

E/S — Panneau arrière

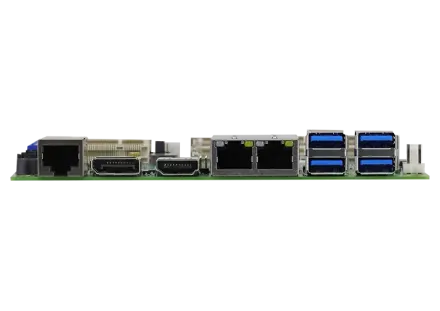

Accès frontal
Où le IB811 est déployé
Drop-in board for custom enclosures, instrumentation, and purpose-built hardware.
PLC-adjacent controllers, motion control, and machine-tending applications.
Behind-display compute for purpose-built kiosk and terminal hardware.
Instrument hosts and ATE controllers built around a serviceable long-lifecycle board.
Nos ingénieurs d'application adapteront votre environnement, votre pile logicielle et vos exigences d'E/S à la bonne plateforme — ou modifieront celle-ci.
PARLER À UN INGÉNIEURRessources
Licensed customers get access to BIOS source, schematics, and full production test documentation.
REQUEST PORTAL ACCESSCommande
| IB811F-I50 | - 3.5”, Intel® Atom™ x7 / E3950 (1.6~2.0GHz), dual GbE LAN, HDMI, DisplayPort & eDP or LVDS (24-bit LVDS dual channel), mSATA, M.2, EuP/ErP, 9V~36V DC-in, Wide Temp. support Demander une soumission |
|---|---|
| IB811F-I30 | - 3.5”, Intel® Atom™ x5 / E3930 (1.3~1.8GHz), dual GbE LAN, HDMI, DisplayPort & eDP or LVDS (24-bit LVDS dual channel), mSATA, M.2, EuP/ErP, 9V~36V DC-in, Wide Temp. support Demander une soumission |
| IB811F-420 | - 3.5”, Intel® Pentium® N4200 (1.1~2.5GHz), dual GbE LAN, HDMI, DisplayPort & eDP or LVDS (24-bit LVDS dual channel), mSATA, M.2, EuP/ErP, 9V~36V DC-in Demander une soumission |
| IB811F-335 | - 3.5”, Intel® Celeron® N3350 (1.1~2.4GHz), dual GbE LAN, HDMI, DisplayPort & eDP or LVDS (24-bit LVDS dual channel), mSATA, M.2, EuP/ErP, 9V~36V DC-in Demander une soumission |
| HSIB811-BGA | - Heatsink for IB811 Demander une soumission |
