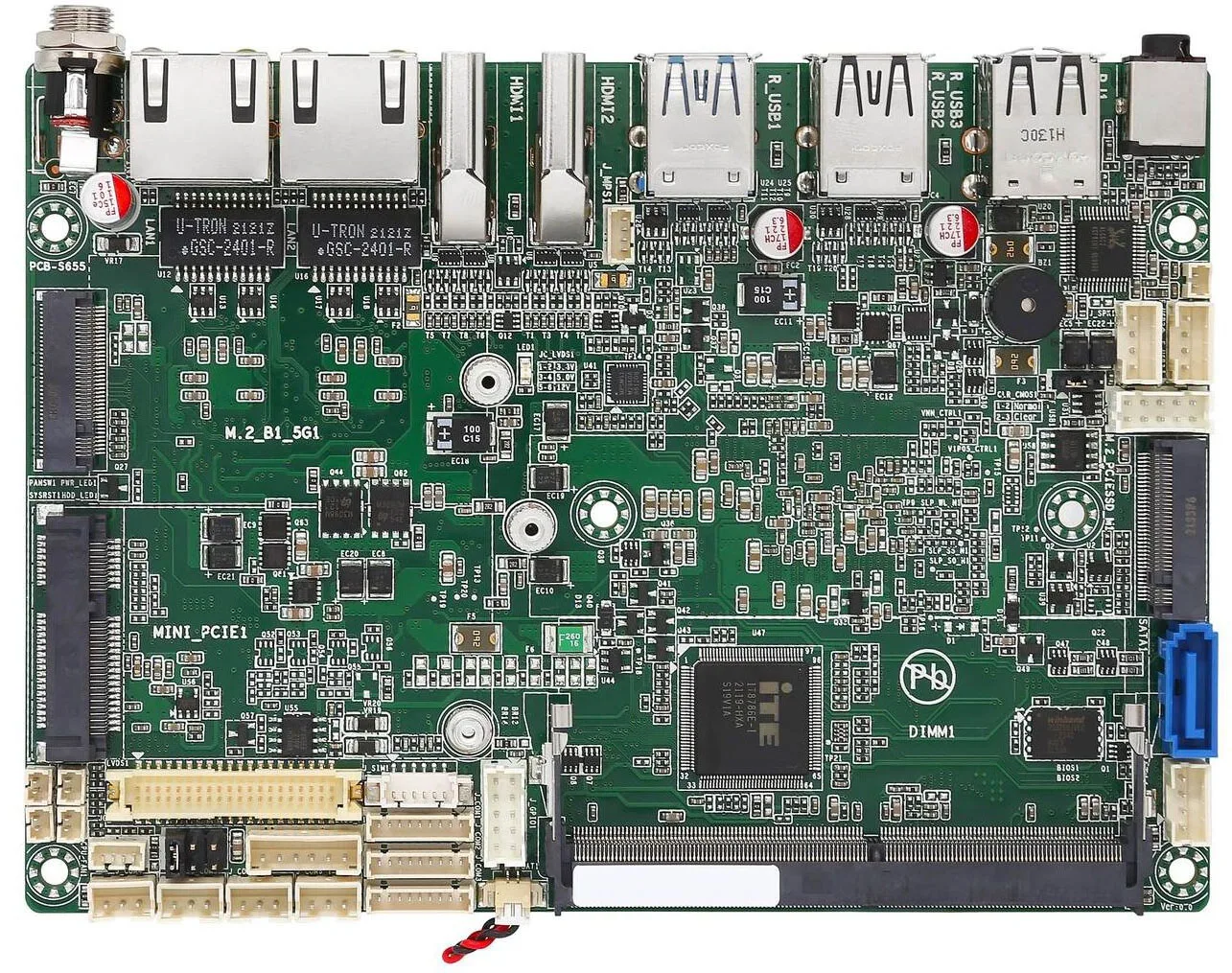

IB6412
MB-IB6412 - IBT6412 - Intel Elkhart lake industrial 3.5-Inch with Celeron J6412 processor Quad-Core
MB-IB6412 - IBT6412 - Intel Elkhart lake industrial 3.5-Inch with Celeron J6412 processor Quad-Core. Soutien de garantie local et personnalisation d’ingénierie offerte sur demande.
Spécifications
| Processeur | Intel Celeron J6412 CPU, Quad-Core, up to 2.6 GHz, TDP 10W |
|---|---|
| Chipset | SoC integrated |
| Mémoire système | DDR4-2666/2933/3200, 1 x SO-DIMM, up to 16GB |
| BIOS | AMI |
| COM | 3 x RS-232 (COM 1/2/3, Header) · 2 x RS-232/TTL (COM 4/5, Header) · 1 x RS-232/485/TTL (COM 6, Header) |
| USB | 3 x USB 3.0 · 3 x USB 2.0 · 4 x USB 2.0 (Internal) |
| Ethernet | 2 x RJ-45, Intel I211/I210 Giga LAN |
| Affichage | 2 x HDMI (Up to 4096 x 2160 @ 30Hz) · 1 x LVDS (Up to 1920 x 1200 @ 60Hz (default)) · 1 x eDP optional (Up to 3840 x 2160 @ 60Hz 30bpp or 4096 x 2304 @ 60Hz 24bpp) |
| E/S numériques | Programmable support 8-bit GPIO |
| Audio | Realtek ALC662 5.1 Channel HDA Codec |
| Stockage | 1 x SATA 3.0, 1 x M.2 SATA, 1 x mSATA |
| Extension | 1 x M.2 (Key-M, 2280, NVMe x2/ SATA) · 1 x M.2 (Key-B, 3052, USB 3.0/2.0) · 1 x Mini-PCIe (PCIe + USB 2.0/ SATA) |
| Autres | 1 x Power LED Header · 1 x Power Button Header · 1 x System Reset Header · 1 x HDD LED Header · 1 x CPU FAN Header · 1 x MPS Header · 2 x GSPI Header · 1 x SIM Card Header |
| Pile | Yes |
| Alimentation requise | DC 12V Power Input 2.5mm Jack |
| Minuterie de surveillance | 1 - 255 steps by software program |
| Surveillance matérielle | - |
| Dimensions | 146 x 105 mm, 3.5-inch |
| Épaisseur de la carte | Thin |
| Certifications | CE, FCC Class B |
| Température de fonctionnement | -20°C to +60°C (-40°C to +85°C Optional) |
| Humidité relative | 5% to 95% relative humidity, non-condensing |
Caractéristiques
| Caractéristique 1 | Elkhart Lake 3.5 Inch SBC |
|---|---|
| Caractéristique 2 | SoC Chipsets |
| Caractéristique 3 | Dual Intel GbE |
| Caractéristique 4 | Dual HDMI Display |
| Caractéristique 5 | Memory DDR4 2666/2933/3200 |
| Caractéristique 6 | 3 SATAIII, 6 serials and 10 USBs |
E/S — Panneau arrière
Accès frontal
Où le IB6412 est déployé
Drop-in board for custom enclosures, instrumentation, and purpose-built hardware.
PLC-adjacent controllers, motion control, and machine-tending applications.
Behind-display compute for purpose-built kiosk and terminal hardware.
Instrument hosts and ATE controllers built around a serviceable long-lifecycle board.
Nos ingénieurs d'application adapteront votre environnement, votre pile logicielle et vos exigences d'E/S à la bonne plateforme — ou modifieront celle-ci.
PARLER À UN INGÉNIEURRessources
Licensed customers get access to BIOS source, schematics, and full production test documentation.
REQUEST PORTAL ACCESSCommande
| IBT6412 | 3.5-inch Embedded SBC Intel Celeron J6412, up to 16GB DDR4 RAM, 2xHDMI, 1xLVDS/eDP, 2xGbit LAN, 1xSATA, 1xM.2 Key-B(Wifi), 1xM.2 Key-M, 1xMPCIe(SATA), 6xCOM, 10xUSB, Audio, 10%..95RH, 12V DC-in, -20..+60C operating temp. Demander une soumission |
|---|---|
| IB6412 | 3.5-inch Embedded SBC Intel Celeron J6412, up to 16GB DDR4 RAM, 2xHDMI, 1xLVDS/eDP, 2xGbit LAN, 1xSATA, 1xM.2 Key-B(SATA), 1xM.2 Key-M(SATA), 1xMPCIE(SATA/WIFI), 6xCOM, 10xUSB, Audio, 10%..95RH, 12V DC-in, -20..+60C operating temp. Demander une soumission |
| CAB-USB122S-270 | Dual-USB for Panel mount 270mm Demander une soumission |
| CAB-USB122S1-270 | Single-USB for Panel mount 270mm Demander une soumission |
| CAB-USB122S2-270 | Dual-USB (from two singles) for Panel mount 270mm Demander une soumission |
| CAB-PK1-115D-150 | Single DB9M panel mount for COM port 150mm Demander une soumission |
| IB-BOX-J6412 | - Small Fanless Computer with Intel 10th Gen. J6412, Dual GbE, Quad USB 3.0, 9~36VDC power input Demander une soumission |
