AGS103T
Système d’informatique en périphérie IoT Gateway compact — Intel® Atom® x6414RE/x6212RE Processors
Système d’informatique en périphérie IoT Gateway compact — Intel® Atom® x6414RE/x6212RE Processors. Soutien de garantie local et personnalisation d’ingénierie offerte sur demande.
Spécifications
| Carte mère du système | IB803T |
|---|---|
| Type de processeur | Intel® Atom® x6414RE (1.5GHz, 1.5MB cache, 9W TDP)Intel® Atom® x6212RE (1.2GHz, 1.5MB cache, 6W TDP) |
| Vitesse du système | Up to 1.5GHz |
| Mémoire | 1x DDR4 3200 SO-DIMM. Max. 16GB |
| E/S externes du panneau arrière | 1x DVI-I + 1x HDMI2x USB 3.1 ports, 2x USB 2.0 port3x RJ45 2.5G Ethernet port4x LED indicators (GPIO, WLAN, WWAN)1x power button with Green LED1x 3-pin DC-in terminal block for 9V-36V2x Antenna hole for WLAN module2x RS232/422/485 ports for COM#3/COM#41x 4-in & 4-out GPIO |

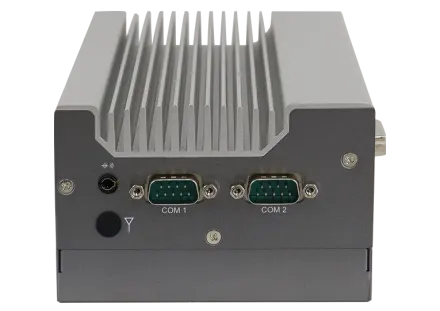

| E/S externes du panneau gauche | 2x RS232/422/485 ports for COM#1/COM#21x Antenna hole for WLAN module1x Line-out/ Mic-in |
| E/S externes du panneau droit | 2x SIM card slot1x Antenna hole for WLAN module |
| Emplacements d’extension | 1x Full-size Mini PCI-E socket (USB 2.0)1x Full-size Mini PCI-E socket (USB 2.0 + SATA)1x M.2 B-Key socket (USB 3.0 + PCI-E) |
| Stockage | 1x Mini PCI-E slot (mSATA SSD),1x 2.5’’ SSD (AGS103TS) |
| Construction | Aluminum & steel |
| Couleur du châssis | Silver & Gray |

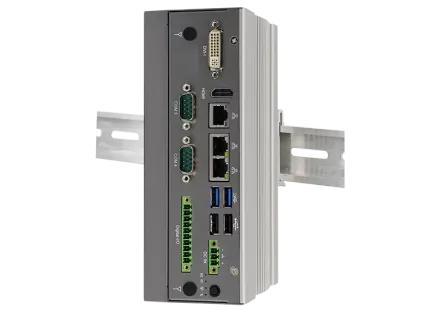

| Montage | DIN-rail mounting (DIN-rail mount kit included)Desktop or wall mounting (wall mount kit included) |
| Dimensions | AGS103T :218mm(W) x 110mm(D) x 52mm (H) w/ Wall-mount kit8.58”(W) x 4.33mm(D) x 2.05mm (H)AGS103TS :218mm(W) x 110mm(D) x 73mm (H) w/ Wall-mount kit8.58”(W) x 4.33mm(D) x 2.87mm (H) |
| Poids | 1.2kg |
| Température de fonctionnement | -20°C~70°C (-4°F~158°F) |
| Température d’entreposage | -40°C ~ 85°C (-40°F~185°F) |
| Humidité relative | 5~90% @ 60°C, (non-condensing) |
| Vibrations | Operating: 1 Grms/ 3~500 Hz / random operation (with IEC 60068-2-64) |
| Chocs | Operating: 30G/11 ms DurationNon-operating: 40G/11 ms Duration |
| Certification | CE / LVD / FCC Class A |
| Systèmes d’exploitation | Win10 and Linux Ubuntu |

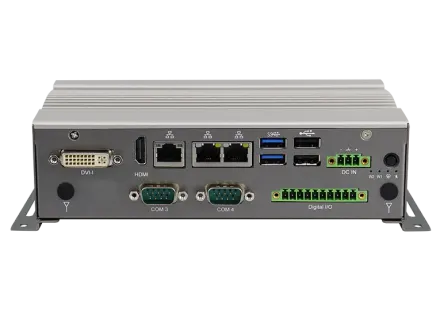

E/S — Panneau arrière
Accès frontal
Où le AGS103T est déployé
PLC supervision, machine data collection, and OPC UA gateways in harsh production environments.
On-premise inference for vision, quality inspection, and predictive maintenance workloads.
Unattended operation across wide ambient temperature swings with no fan to fail.
Substations, pump stations, and telecom remote sites needing silent, low-maintenance compute.
Nos ingénieurs d'application adapteront votre environnement, votre pile logicielle et vos exigences d'E/S à la bonne plateforme — ou modifieront celle-ci.
PARLER À UN INGÉNIEURRessources
Licensed customers get access to BIOS source, schematics, and full production test documentation.
REQUEST PORTAL ACCESSCommande
| AGS103T-6414RM | - Fanless DIN-rail System supports TPM2.0 w/ Intel® Atom® Processor x6414RE, 3x 2.5G Ethernet port, 4x COM, w/o memory, storage, power adaptor Demander une soumission |
|---|---|
| AGS103TS-6414RM | - Fanless DIN-rail System supports TPM2.0 w/ Intel® Atom® Processor x6414RE, 3x 2.5G Ethernet port, 4x COM, w/o memory, storage, power adaptor, w/ 2.5” storage slot Demander une soumission |
| AGS103T-6212RM | - Fanless DIN-rail System supports TPM2.0 w/ Intel® Atom® Processor x6212RE, 3x 2.5G Ethernet port, 4x COM, w/o memory, storage, power adaptor Demander une soumission |
| AGS103TS-6212RM | - Fanless DIN-rail System supports TPM2.0 w/ Intel® Atom® Processor x6212RE, 3x 2.5G Ethernet port, 4x COM, w/o memory, storage, power adaptor, w/ 2.5” storage slot Demander une soumission |
| 90W power adaptor | - 90W (24V@3.75A) power adaptor, bare wire type compatible with IEC62368-1/EN62368-1 (optional) Demander une soumission |
