AGS102T
Système d’informatique en périphérie IoT Gateway ultra-compact — Intel® Atom® x7/x5, Pentium® & Celeron® Processors
Système d’informatique en périphérie IoT Gateway ultra-compact — Intel® Atom® x7/x5, Pentium® & Celeron® Processors. Soutien de garantie local et personnalisation d’ingénierie offerte sur demande.
Spécifications
| Carte mère du système | IB802T (F-1 Stepping) |
|---|---|
| Type de processeur | Intel® Atom® x7-E3950/x5-E3940/x5-E3930 & Pentium® N4200/ Celeron® N3350 Series Processors |
| Vitesse du système | Up to 2.5GHz |
| Mémoire | 1x 4GB DDR3L-1866 SO-DIMM, Max. 8GB |

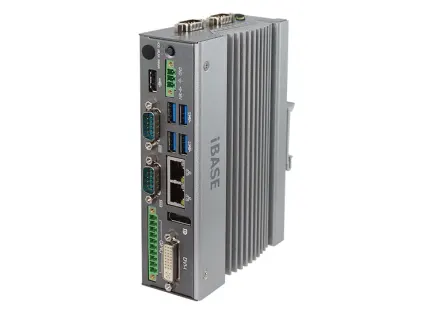

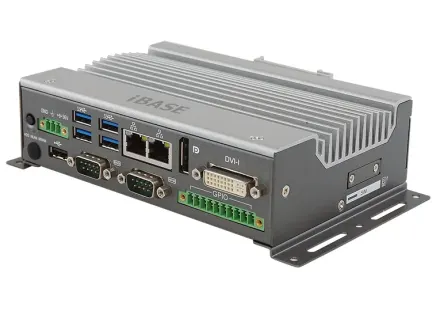

| E/S externes du panneau arrière | 1x DVI-I + 1x DisplayPort connector4x USB 3.0 ports, 1x USB 2.0 port2x RJ45 Gigabit Ethernet port3x LED indicators (HDD, WLAN, WWAN)1x Black power button with Blue LED1x 3-pin DC-in terminal block for 9V-36V1x Antenna hole for WLAN module2x RS232/422/485 ports for COM#3/COM#41x 4-in & 4-out GPIO with isolation |

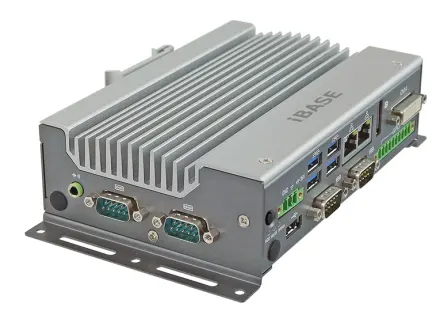

| E/S externes du panneau gauche | 2x RS232/422/485 ports for COM#1/COM#21x Antenna hole for WLAN module1x Line-out |

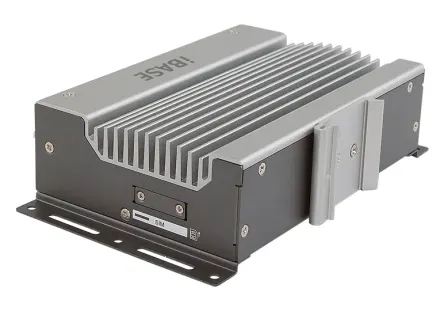

| E/S externes du panneau droit | 1x SIM card slot |
| Emplacements d’extension | 1x Full-size Mini PCI-E socket (USB 2.0 + PCI-E + SATA)1x 2230 M.2 E-key socket for WLAN & BT (USB 2.0 + PCI-E)1x 3042 M.2 B-key socket for WWAN & SSD (USB 2.0 + SATA) |
| Stockage | 1x mSATA socket (Mini-PCI-E)1x 2242 M.2 B-Key socket for SSD |
| Construction | Aluminum & steel |
| Couleur du châssis | Silver & Gray |

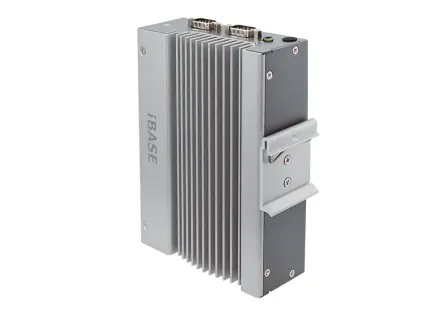

| Montage | DIN-rail mounting (DIN-rail mount kit included)Desktop or wall mounting (wall mount kit included) |
| Dimensions | 160mm (W) x 110mm (D) x 44mm (H) 6.3" (W) x 4.33" (D) x 1.73" (H) |
| Poids | 1 kg |
| Température de fonctionnement | For E-series CPU: -40°C~70°C (-40°F~158°F)For N-series CPU: -20°C~60°C (-4°F~140°F) |
| Température d’entreposage | -40°C ~ 85°C (-40°F~185°F) |
| Humidité relative | 5~90% @ 45°C, (non-condensing) |
| Vibrations | Operatiing: 2.0 grms / 5~500Hz / random operation (with IEC 60068-2-64) Non-Operating: 3.0 grms / 5~500Hz / random operation (with IEC 60068-2-64) |
| Chocs | Operating: 30G/11 ms Duration (with MIL-STD-810G)Non-operating: 40G/11 ms Duration (with MIL-STD-810G) |
| Certification | CE / LVD / FCC Class A |
| Systèmes d’exploitation | N/A |

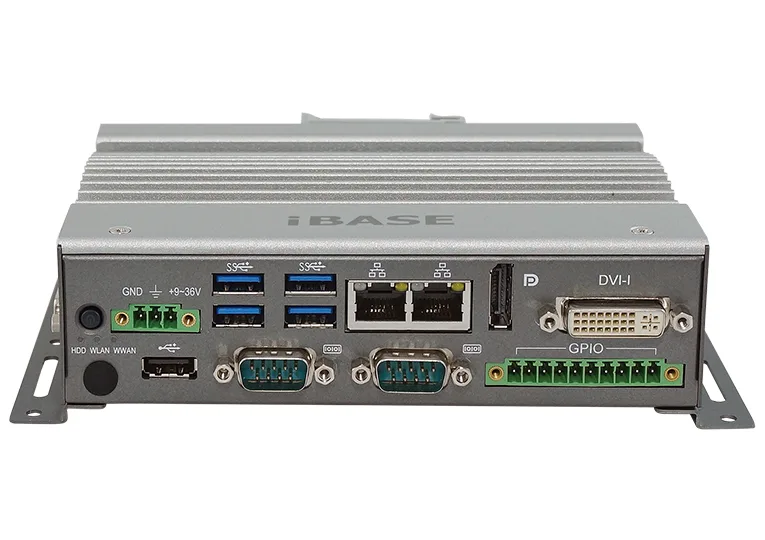

E/S — Panneau arrière
Accès frontal
Où le AGS102T est déployé
PLC supervision, machine data collection, and OPC UA gateways in harsh production environments.
On-premise inference for vision, quality inspection, and predictive maintenance workloads.
Unattended operation across wide ambient temperature swings with no fan to fail.
Substations, pump stations, and telecom remote sites needing silent, low-maintenance compute.
Nos ingénieurs d'application adapteront votre environnement, votre pile logicielle et vos exigences d'E/S à la bonne plateforme — ou modifieront celle-ci.
PARLER À UN INGÉNIEURRessources
Licensed customers get access to BIOS source, schematics, and full production test documentation.
REQUEST PORTAL ACCESSCommande
| AGS102T-I50M | - Fanless DIN-rail System supports TPM2.0 w/ Intel® Atom® Processor x7-E3950, 4x COM, w/o power adaptor, memory, storage Demander une soumission |
|---|---|
| AGS102T-I40M | - Fanless DIN-rail System supports TPM2.0 w/ Intel® Atom® Processor x5-E3940, 4x COM, w/o power adaptor, memory, storage Demander une soumission |
| AGS102T-I30M | - Fanless DIN-rail System supports TPM2.0 w/ Intel® Atom® Processor x5-E3930, 4x COM, w/o power adaptor, memory, storage Demander une soumission |
| AGS102T-420M | - Fanless DIN-rail System supports TPM2.0 w/ Intel® Pentium® Processor N4200, 4x COM, w/o power adaptor, memory, storage Demander une soumission |
| AGS102T-335M | - Fanless DIN-rail System supports TPM2.0 w/ Intel® Celeron® Processor N3350, 4x COM, w/o power adaptor, memory, storage Demander une soumission |
| 60W power adaptor | - 60W (12V@5A) power adaptor, bare wire type, compatible with IEC62368-1/EN62368-1 (optional) Demander une soumission |
